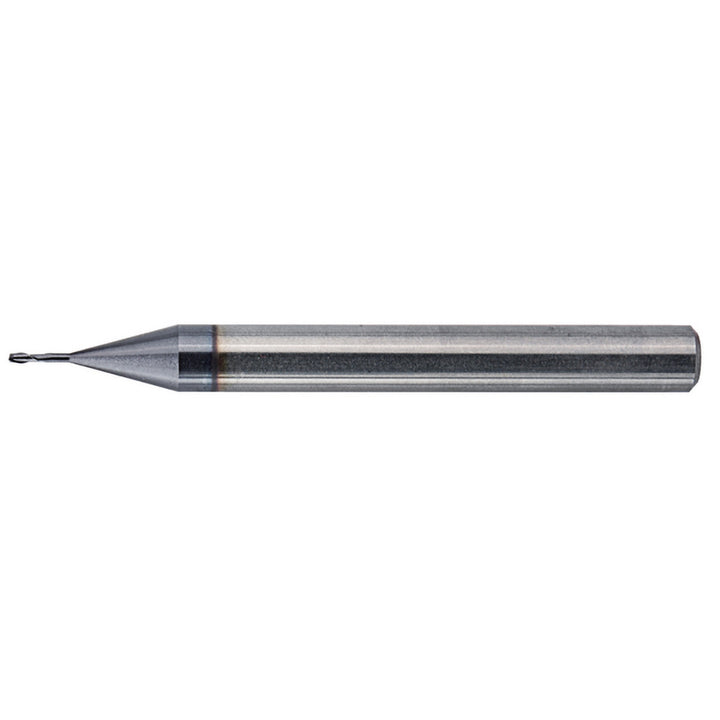

0.0394" 2-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6433265

Kennametal

0.0394" 2-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6433265

MFR# 6433265Series F2AH-WSM

$75.55List $96.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6433265 is a 0.0394 2-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, cast iron, hardened materials. 0.0591 length of cut, 2.3622 overall length. Series F2AH-WSM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.0591
Length of cut range0.0000 - 0.1000
Material gradeKCPM15
Mill diameter0.0394
Number of flutes2
Overall length2.3622
Primary workpiece materialSteel; Cast Iron; Hardened Materials
Reach length0.0591
Shank diameter0.2362
Shank typeStraight
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS0.0394" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 02809 $18.94 OSG0.0394" 2-Flute Solid Carbide Square End Mill, WXL - OSG 3132016 $82.32 OSG0.0394" 2-Flute Solid Carbide Square End Mill, WXL - OSG 3132006 $54.88 OSG0.0394" 2-Flute Solid Carbide Square End Mill, WXL - OSG 3132012 $54.88
