Sandvik Coromant

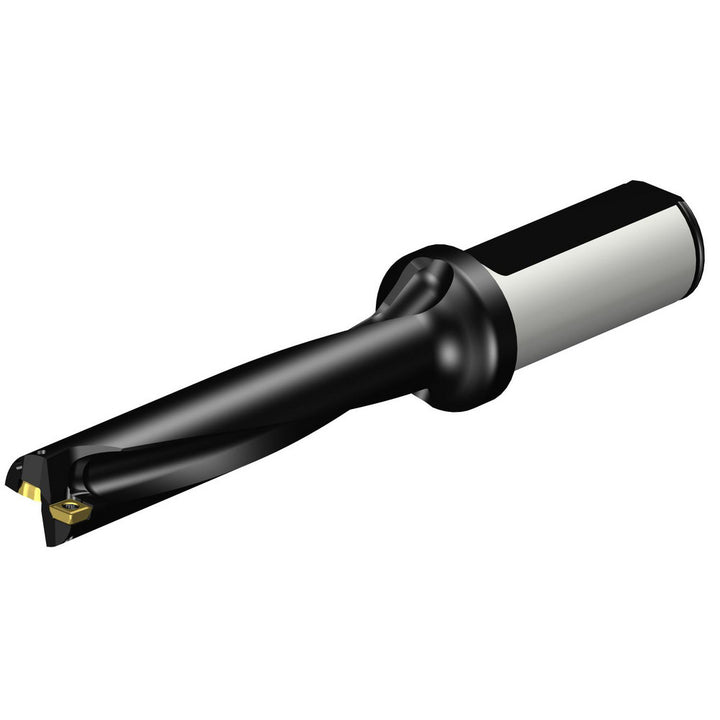

Indexable Drilling - Sandvik Coromant 5765318
MFR# 5765318Series CoroDrill 880
$922.05List $979.56
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765318 indexable drilling. Series CoroDrill 880.
Specifications
Body length4.3969
Compatible drill style880
Compatible insert size code030305; 0303W05
Compatible insert style880
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length3.6614
Insert compatibility880-030305H-C-GM; 880-0303W05H-P-GM
Insert lock screw5513 020-33
Insert size (mm)5.70; 6.00
Maximum drill depth3.7795
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter0.9843
Number of drill inserts2
Shank diameter0.9843
Shank length2.2047
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
