Sandvik Coromant

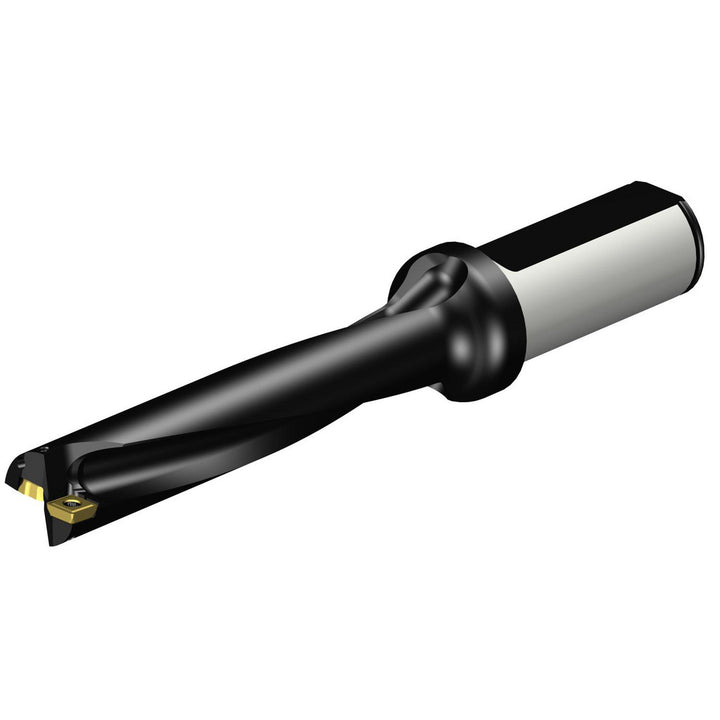

Indexable Drilling - Sandvik Coromant 5765394
MFR# 5765394Series CoroDrill 880
$853.75List $907.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765394 indexable drilling. Series CoroDrill 880.
Specifications
Body length4.7492
Compatible drill style880
Compatible insert size code040305; 0403W05
Compatible insert style880
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length3.9370
Insert compatibility880-040305H-C-GM; 880-0403W05H-P-GM
Insert lock screw5513 020-58
Insert size (mm)6.80; 7.40
Maximum drill depth4.0945
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter0.9843
Number of drill inserts2
Shank diameter0.9843
Shank length2.2047
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
