Sandvik Coromant

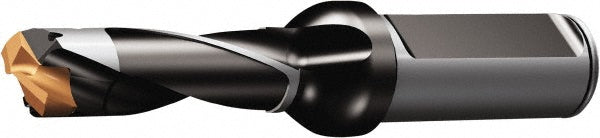

Indexable Drilling - Sandvik Coromant 6035644
MFR# 6035644Series CoroDrill 870
$438.15List $465.48
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035644 indexable drilling. Series CoroDrill 870.
Specifications
Body length1.6929in
Compatible insert style870-1290-11-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.1268
Insert seat size11
Maximum drill depth1.6130
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5114
Minimum drill diameter0.4921
Overall length4.0945in
Shank length1.8898in
Shank typeStraight-Cylindrical
Toolholder style870 LX-3
Tool materialSteel
