Sandvik Coromant

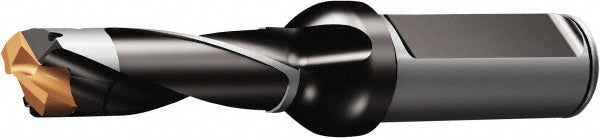

Indexable Drilling - Sandvik Coromant 6035669
MFR# 6035669Series CoroDrill 870
$438.15List $465.48
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035669 indexable drilling. Series CoroDrill 870.
Specifications
Body length1.9685in
Compatible insert style870-1490-14-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.5087
Insert seat size14
Maximum drill depth1.8610
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.5902
Minimum drill diameter0.5512
Overall length4.5669in
Shank diameter0.7874
Shank length1.9685in
Shank typeStraight-Cylindrical
Toolholder style870 L-3
Tool materialSteel
