Sandvik Coromant

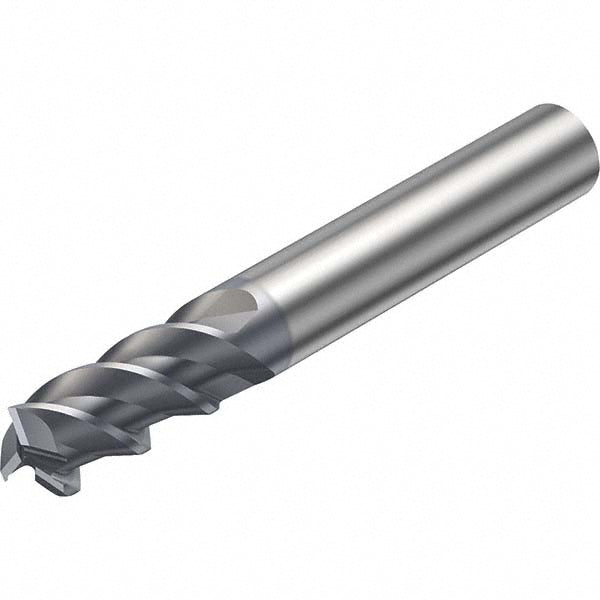

1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Sandvik Coromant 7045782
MFR# 7045782Cat# 1P330-0635-XASeries 1P330
$75.85List $95.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 7045782 is a 1/4 3-flute Solid Carbide (1620) corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 27/64 length of cut, 2-1/2 overall length. Series 1P330.
Specifications
CentercuttingYes
Chamfer angle45
Chamfer length0.0040
Chamfer width0.0040
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in27/64
Length typeShort
Manufacturers catalog number1P330-0635-XA
Material grade1620
Material removal typeRoughing & Finishing
Mill diameter in1/4
Mill diameter toleranceh10
Number of flutes3
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length in27/64
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
