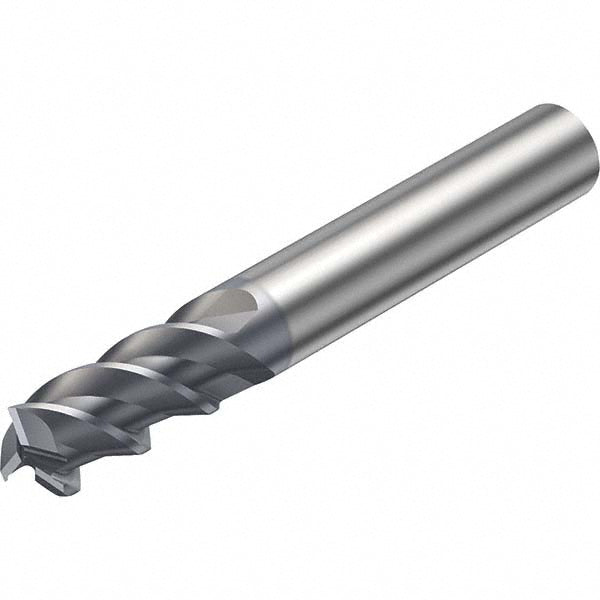

1/2" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Sandvik Coromant 7045784

MFR# 7045784Cat# 1P330-1270-XASeries 1P330

$178.52List $228.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The Sandvik Coromant 7045784 is a 1/2 3-flute Solid Carbide (1620) corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 59/64 length of cut, 3 overall length. Series 1P330.

Specifications

CentercuttingYes

Chamfer angle45

Chamfer length0.0040

Chamfer width0.0040

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Helix styleHigh

Length of cut in59/64

Length typeShort

Manufacturers catalog number1P330-1270-XA

Material grade1620

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter toleranceh10

Number of flutes3

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length in59/64

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
