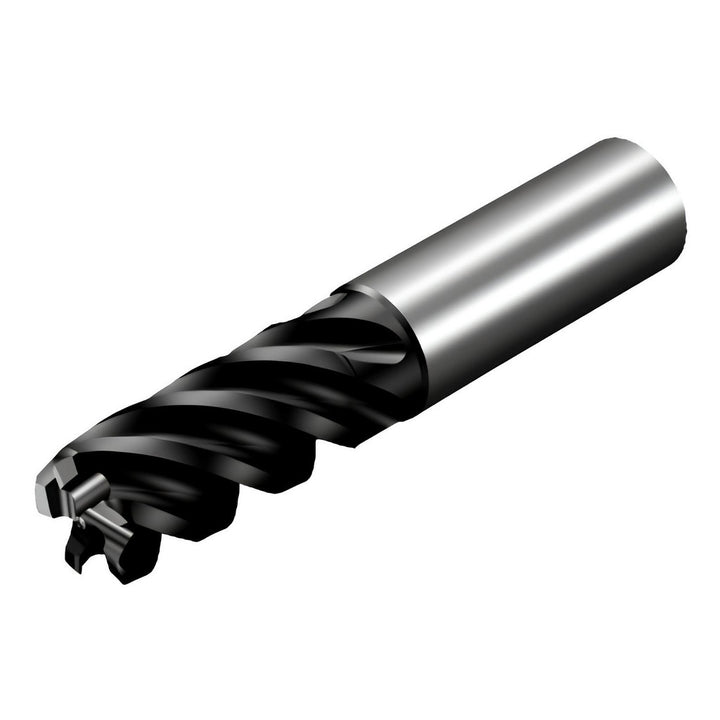

3/8" 6-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlSiN - Sandvik Coromant 7419196

MFR# 7419196Cat# 2F340-0953-076-SCSeries 2F340

$211.37List $271.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

CoatingTiAlSiN

Description

The Sandvik Coromant 7419196 is a 3/8 6-flute Solid Carbide (1745) corner radius & corner chamfer end mill with a TiAlSiN finish for longer tool life. Suited for superalloys & titanium. 25/32 length of cut, 2-3/4 overall length. Series 2F340.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle42

Helix styleHigh

Length of cut in25/32

Length typeExtended

Manufacturers catalog number2F340-0953-076-SC

Material grade1745

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh10

Neck diameter0.3560

Number of flutes6

Overall length in2-3/4

PitchClose

Primary workpiece materialSuperalloys & Titanium

Reach length in1-5/32

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
