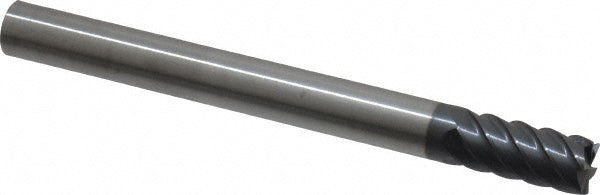

3/8" 6-Flute Solid Carbide Square End Mill, AlTiN - SGS 36142

SGS

3/8" 6-Flute Solid Carbide Square End Mill, AlTiN - SGS 36142

MFR# 36142Series 57

$131.64List $168.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36142 is a 3/8 6-flute Solid Carbide square end mill. Suited for hard material. 13/16 length of cut, 4 overall length. Series 57.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in13/16
Length typeExtra Long
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0016 in
Number of flutes6
Overall length in4
Primary workpiece materialHard Material
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
