Helical Solutions

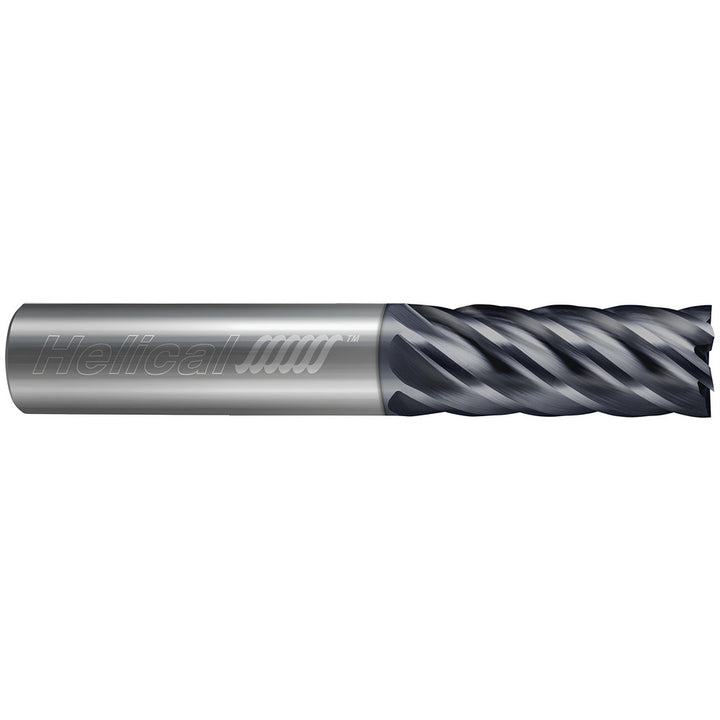

3/8" 6-Flute Solid Carbide Corner Radius End Mill, Tplus - Helical Solutions 86015

MFR# 86015Series HEV-6

$98.17List $114.62 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes6

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 86015 is a 3/8 6-flute Solid Carbide corner radius end mill with a Tplus finish for longer tool life. Suited for stainless steel, high temperature alloy, hard material. 3/4 length of cut, 2-1/2 overall length. Series HEV-6.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTplus

Coolant throughNo

Corner radius0.0200

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHigh Precision Toolholders

Length of cut in3/4

Material applicationStainless Steel; High-Temperature Alloy; Hardened Steel

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in2-1/2

Overall length tolerance-0.0620/0.0620 in

PitchVariable

Primary workpiece materialStainless Steel; High Temperature Alloy; Hard Material

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
