Sandvik Coromant

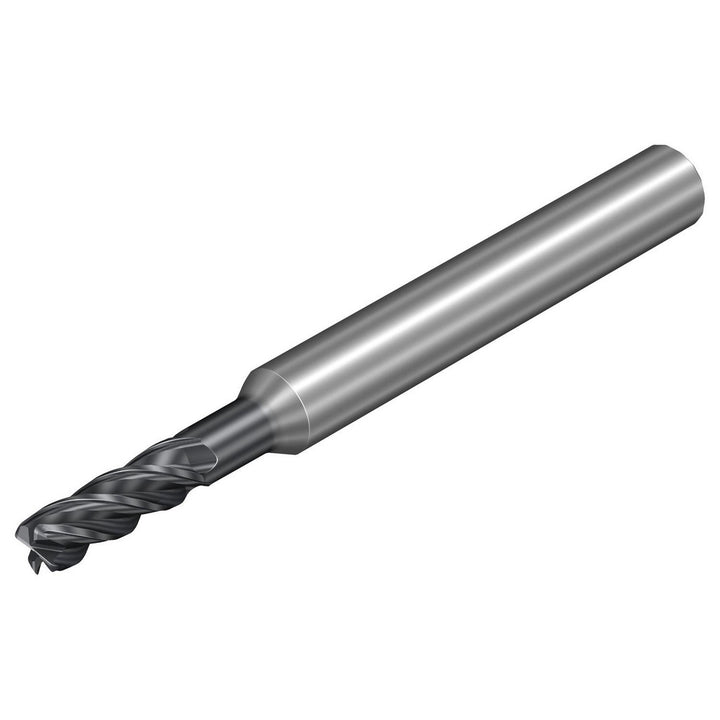

0.1181" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Sandvik Coromant 8213516

MFR# 8213516Cat# 1K354-0300-020-XC 1730Series 1K354

$71.77List $92.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlCrN

Description

The Sandvik Coromant 8213516 is a 0.1181 4-flute Solid Carbide corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 2.2441 overall length. Series 1K354.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0079

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut1.0000

Length typeExtended

Manufacturers catalog number1K354-0300-020-XC 1730

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter0.1181

Mill diameter toleranceh10

Neck diameter (mm)2.88

Number of flutes4

Overall length2.2441

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length (mm)13.50

Secondary workpiece materialStainless Steel

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
