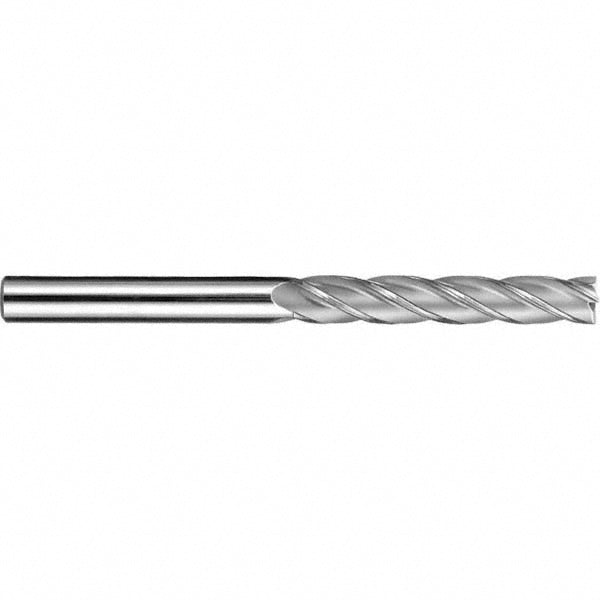

0.1181" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 49401

MFR# 49401Series 1XLM

$30.97List $39.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The SGS 49401 is a 0.1181 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 0.9843 length of cut. Series 1XLM.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.9843

Length of cut range0.8000 - 1.0000

Length typeExtra Long

Material gradeMicrograin

Mill diameter0.1181

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)75

Shank diameter0.1181

Shank diameter tolerance+0.000/-0.006 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
