Seco

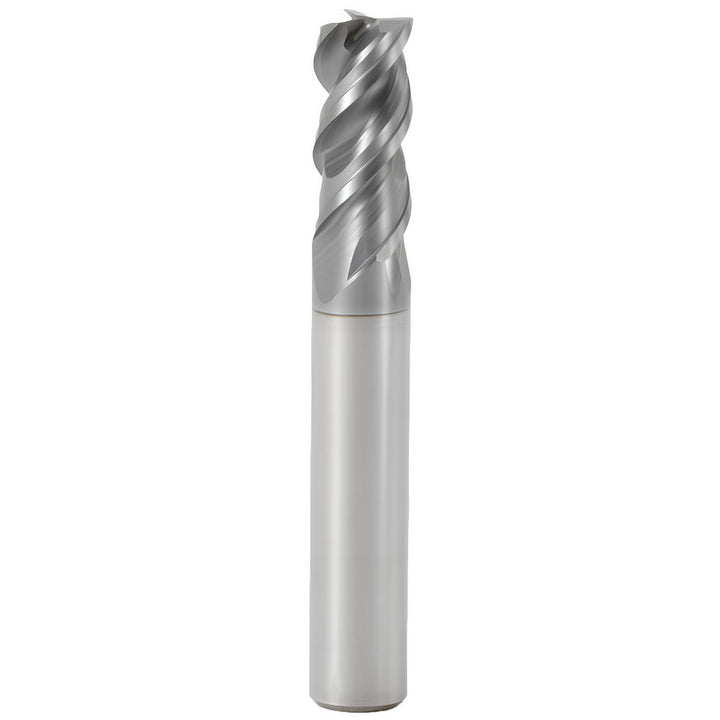

0.0787" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02679241

MFR# 02679241Cat# 553020Z3.0-SIRON-ASeries JS553

$61.18List $75.82 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 02679241 is a 0.0787 3-flute Solid Carbide corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series JS553.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.03

Chamfer width0.0010

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle48

Helix styleHigh

Length of cut0.1969

Length typeShort

Manufacturers catalog number553020Z3.0-SIRON-A

Material removal typeRoughing & Finishing

Mill diameter0.0787

Mill diameter tolerancee7

Neck diameter0.0790

Number of flutes3

Overall length (mm)5.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length (mm)6.00

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
