Seco

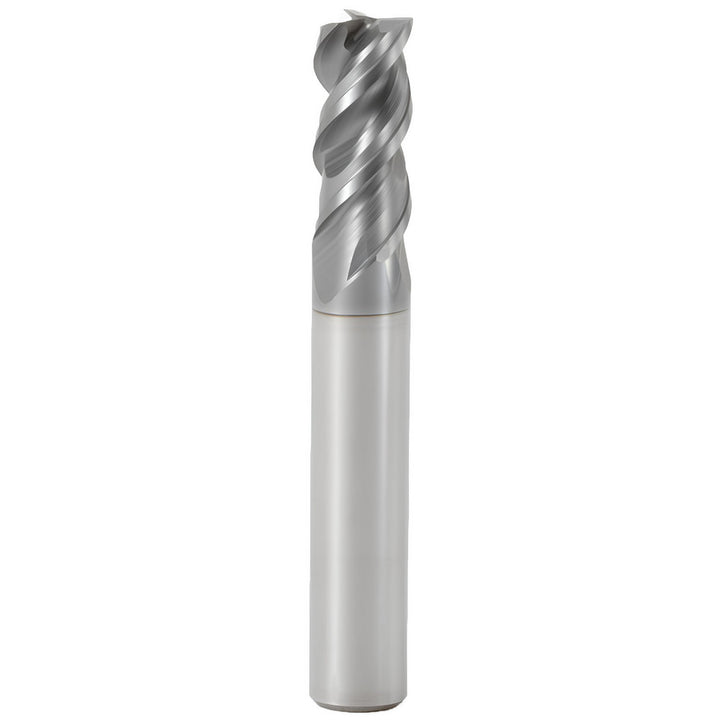

0.1772" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02679361
MFR# 02679361Cat# 553045Z3.0-SIRON-ASeries JS553
$69.01List $85.53
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingSIRON-A
Description
The Seco 02679361 is a 0.1772 3-flute Solid Carbide corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series JS553.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.05
Chamfer width0.0450
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle48
Helix styleHigh
Length of cut0.4724
Length typeShort
Manufacturers catalog number553045Z3.0-SIRON-A
Material removal typeRoughing & Finishing
Mill diameter0.1772
Mill diameter tolerancee7
Neck diameter0.1770
Number of flutes3
Overall length (mm)55.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length (mm)14.00
Shank diameter (mm)6.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
