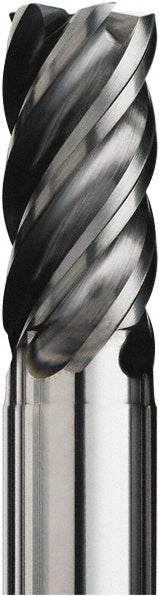

0.3937" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02828218

Seco

0.3937" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02828218

MFR# 02828218Cat# JHP951100E2C.0Z4-SIRASeries JHP951

$233.22
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingSIRON-A

Description

The Seco 02828218 is a 0.3937 4-flute Solid Carbide corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, cast iron. Series JHP951.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.30
Chamfer width0.0118
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix styleHigh
Length of cut0.8661
Length typeShort
Manufacturers catalog numberJHP951100E2C.0Z4-SIRA
Material removal typeRoughing & Finishing
Mill diameter0.3937
Mill diameter tolerancee7
Neck diameter0.3701
Number of flutes4
Overall length (mm)7.00
PitchNormal
Primary workpiece materialSteel; Cast Iron
Reach length1.1024
Secondary workpiece materialSteel
Shank diameter (mm)10.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
