Seco

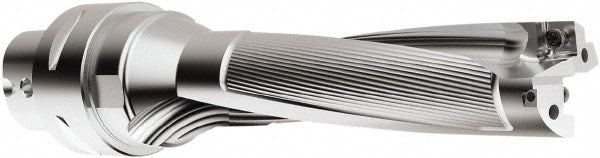

Indexable Drilling - Seco 03080249
MFR# 03080249Series SD524
$1,105.17List $1,263.60
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080249 indexable drilling. Series SD524.
Specifications
Body length157.00
Collar diameter (mm)50.00
Compatible drill styleSD524
Compatible insert size code0903; 070308
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length (mm)117.00
Insert compatibilitySPGX0903; SCGX070308
Insert lock screwC03007-T09P
Insert size (mm)9.53; 7.94
Maximum drill depth (mm)112.00
Maximum drill depth range (mm)100.00 to 150.00
Maximum drill diameter (mm)27.99
Modular connection sizeC5
Number of drill inserts2
Shank diameter (mm)50.00
Shank length (mm)30.00
Shank typeModular Connection
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
