Seco

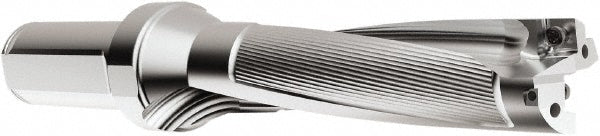

Indexable Drilling - Seco 03080285
MFR# 03080285Series SD524
$754.73List $862.92
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080285 indexable drilling. Series SD524.
Specifications
Body length3.9310
Collar diameter1.3780
Compatible drill styleSD524
Compatible insert size code0502; 050204
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length2.9470
Insert compatibilitySPGX0502; SCGX050204
Insert lock screwC02245-T07P
Insert size0.2190
Maximum drill depth in2-3/4
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.6870
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Overall length6.1810
Shank diameter in1
Shank length2.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
