Seco

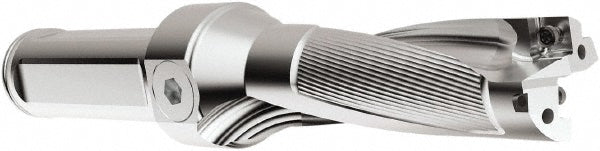

Indexable Drilling - Seco 03080508
MFR# 03080508Series PerfoMAX
$733.00List $838.08
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080508 indexable drilling. Series PerfoMAX.
Specifications
Body length101.80
Collar diameter (mm)35.00
Compatible drill styleSD523
Compatible insert size code060204; 0703
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter in7/8
Flute length (mm)71.80
Insert compatibilitySPGX0703..
Maximum drill depth (mm)66.80
Maximum drill depth range (mm)50.00 to 75.00
Maximum drill diameter in7/8
Modular connection sizeR7-C
Neck diameter in1.3780
Number of drill inserts2
Shank diameter in1
Shank length2.7500
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
