Seco

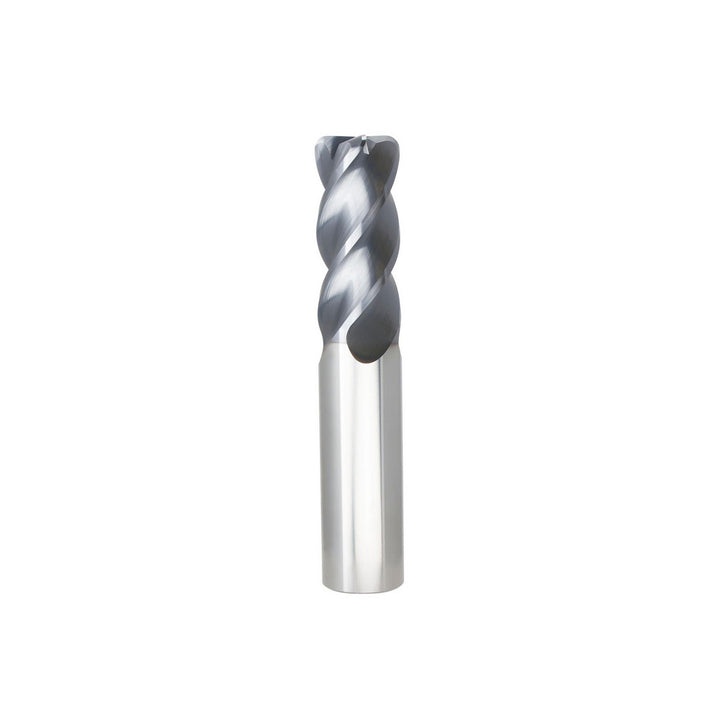

0.4724" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Seco 03083970

MFR# 03083970Series STR440M.2

$123.97List $159.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03083970 is a 0.4724 4-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for hard material, stainless steel. Series STR440M.2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Length of cut1.4173

Length typeLong

Material gradeMicrograin

Mill diameter0.4724

Number of flutes4

Primary workpiece materialHard Material; Stainless Steel

Shank diameter0.4724

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixYes

Variable indexNo
