Seco

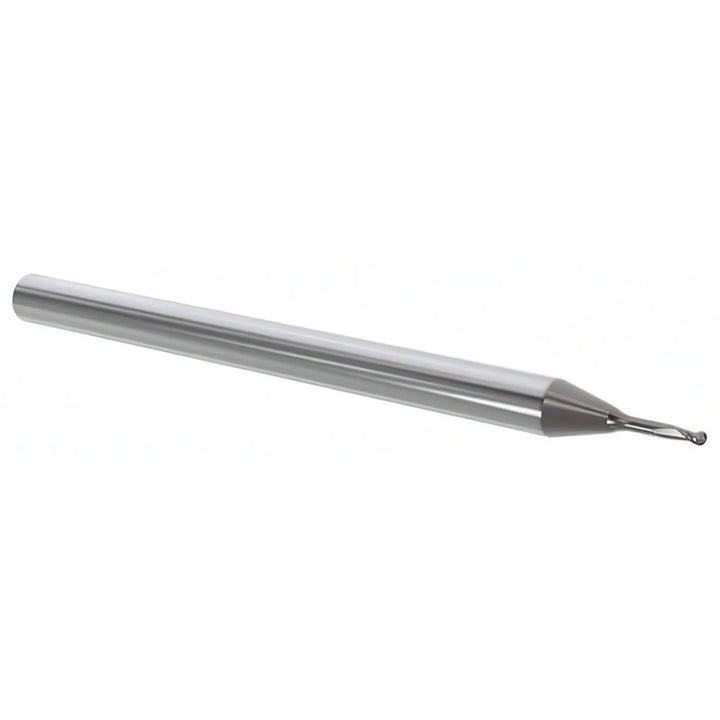

0.0590" 2-Flute Solid Carbide Ball End Mill, Diamond - Seco 03215381

MFR# 03215381Cat# JMB642015G3B.0Z2-DIASeries JMB642

$143.77List $178.20 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingDiamond

Description

The Seco 03215381 is a 0.0590 2-flute Solid Carbide (Micrograin) ball end mill with a Diamond finish for longer tool life. Suited for graphite. 1.9700 overall length. Series JMB642.

Specifications

ChipbreakerNo

Coating finishDiamond

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut (mm)2.40mm

Length typeExtended

Manufacturers catalog numberJMB642015G3B.0Z2-DIA

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.0590

Mill diameter tolerance+0.00/0.02 mm

Neck diameter (mm)1.40

Neck length0.2400

Nose radius (mm)0.75

Number of flutes2

Overall length1.9700

Primary workpiece materialGraphite

Reach length0.3000

Shank diameter0.1600

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
