Seco

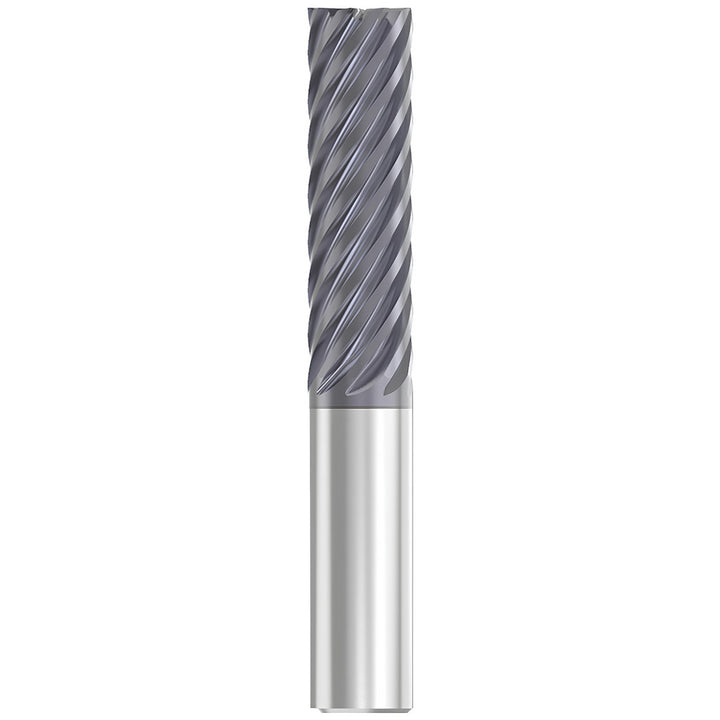

3/4" 9-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Seco 17002367

MFR# 17002367Cat# S938-0.750-D4-C010.0-Z9Series S938

$403.10List $517.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes9

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17002367 is a 3/4 9-flute Solid Carbide (Micrograin) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3-1/4 length of cut, 6 overall length. Series S938.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingNo

Chamfer angle45

Chamfer length0.0100

Chamfer width0.0100

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in3-1/4

Length typeLong

Manufacturers catalog numberS938-0.750-D4-C010.0-Z9

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes9

Overall length in6

PitchSuper Close

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in3-1/4

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexYes
