Seco

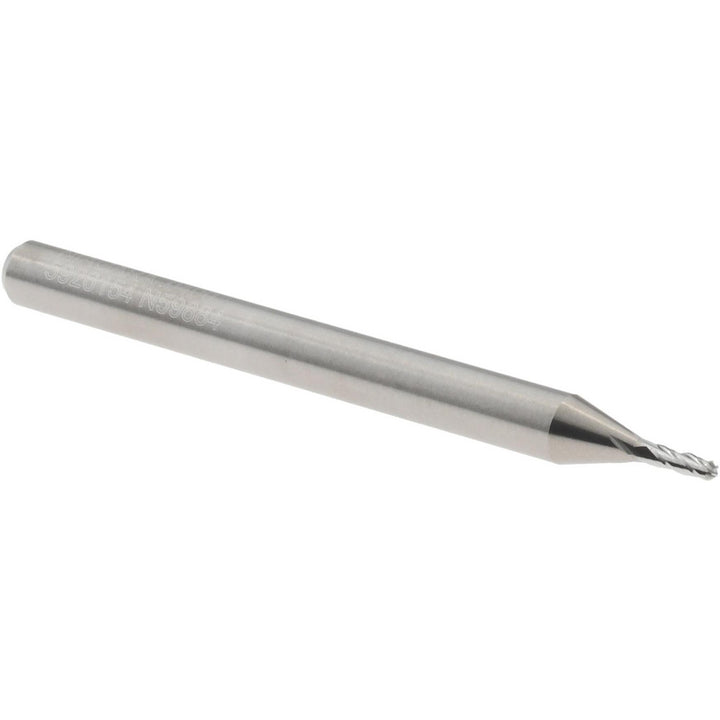

0.0400" 4-Flute Solid Carbide Ball End Mill - Seco 17002701

MFR# 17002701Cat# MEB430-0.040-F3-B.0-Z4Series MEB430

$20.76List $26.63 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17002701 is a 0.0400 4-flute Solid Carbide (Submicron) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1-1/2 overall length. Series MEB430.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length typeStandard

Manufacturers catalog numberMEB430-0.040-F3-B.0-Z4

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.0400

Mill diameter tolerance+0.0000/-0.0020 in

Neck diameter0.0400

Neck length0.0000

Nose radius0.0200

Number of flutes4

Overall length in1-1/2

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length0.1200

Shank diameter in1/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementDecimal Inch

Tir maximum0.0050

Variable helixNo

Variable indexNo
