Seco

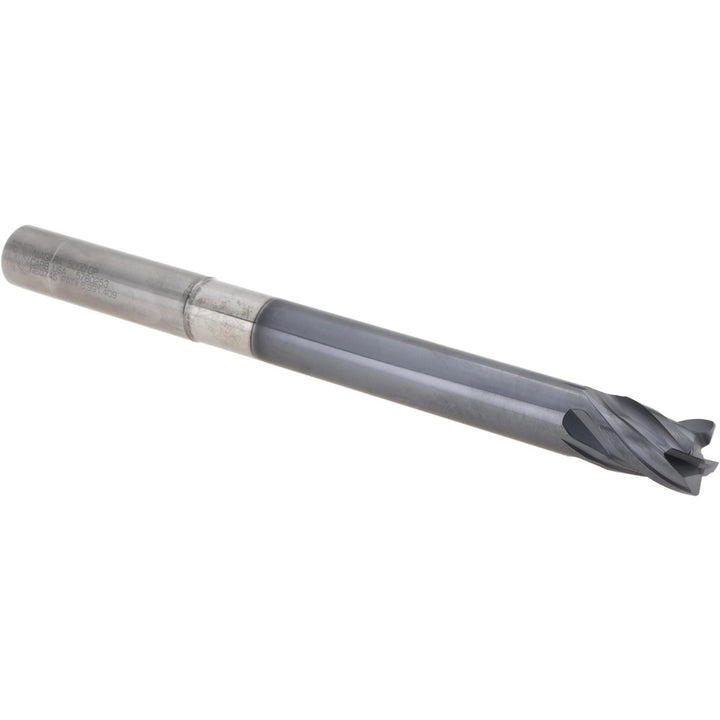

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Seco 17002922

MFR# 17002922Series STRN430

$234.50List $300.76 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Seco 17002922 is a 1/2 4-flute Solid Carbide (Fine Grain) corner radius end mill with a TiAlN finish for longer tool life. 5/8 length of cut, 6 overall length. Series STRN430.

Specifications

CentercuttingYes

Coating finishTiAlN

Corner radius0.0300

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Length of cut in5/8

Material gradeFine Grain

Mill diameter in1/2

Mill diameter tolerance+0.000000/-0.002000 in

Neck diameter0.4800

Number of flutes4

Overall length in6

Overall length tolerance+0.0600/-0.0600 in

Reach length in4-1/8

Shank diameter in1/2

Shank diameter tolerance-0.0001 - -0.0004 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixYes

Variable indexYes
