Seco

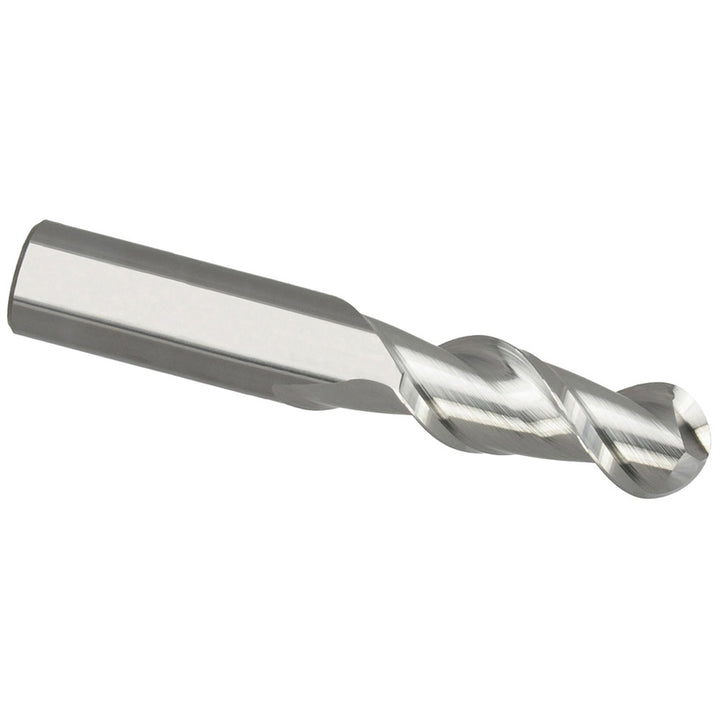

1/2" 2-Flute Solid Carbide Ball End Mill - Seco 17003640

MFR# 17003640Cat# AB245-0.500-D1-B.0-Z2Series AB245

$83.30List $106.84 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17003640 is a 1/2 2-flute Solid Carbide ball end mill. Suited for aluminum & non-ferrous. 5/8 length of cut, 3 overall length. Series AB245.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in5/8

Length typeStub

Manufacturers catalog numberAB245-0.500-D1-B.0-Z2

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.2500

Number of flutes2

Overall length in3

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialAluminum & Non-Ferrous

Reach length0.6250

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
