Seco

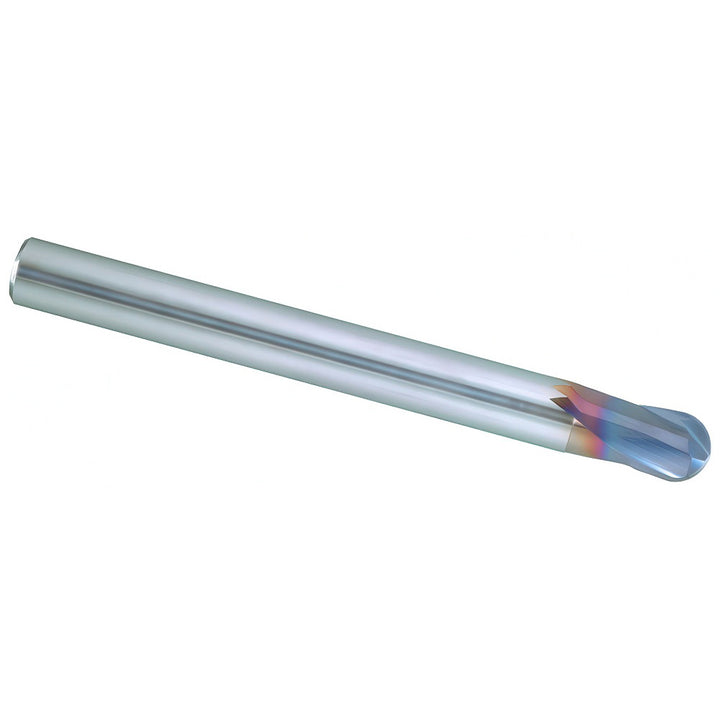

1/8" 2-Flute Solid Carbide Ball End Mill, AlTiN - Seco 17004809

MFR# 17004809Cat# MB215-0.125-G1-B.0-Z2Series MB215

$108.75List $139.48 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes2

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 17004809 is a 1/8 2-flute Solid Carbide ball end mill with a AlTiN finish for longer tool life. Suited for steel, hardened materials. 1/8 length of cut, 3 overall length. Series MB215.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle15

Helix styleLow

Length of cut in1/8

Length typeExtended

Manufacturers catalog numberMB215-0.125-G1-B.0-Z2

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance+0.0000/-0.0020 in

Neck diameter0.1210

Neck length0.1250

Nose radius0.0625

Number of flutes2

Overall length in3

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialSteel; Hardened Materials

Reach length in1/4

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
