Seco

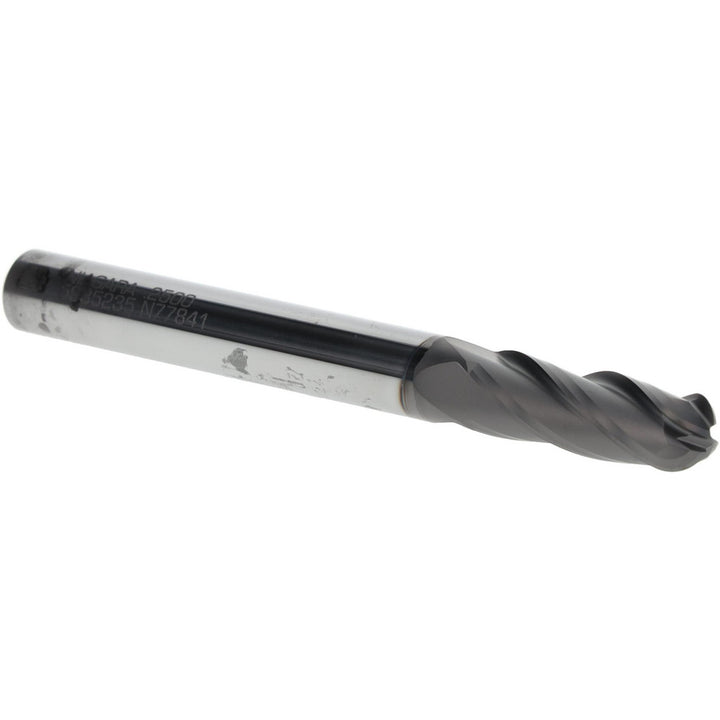

1/4" 4-Flute Solid Carbide Ball End Mill, CVD Diamond - Seco 17005001

MFR# 17005001Cat# DIAB430-0.250-D3-B.0-Z4Series DIAB430

$182.81List $234.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingCVD Diamond

Description

The Seco 17005001 is a 1/4 4-flute Solid Carbide ball end mill with a CVD Diamond finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series DIAB430.

Specifications

ChipbreakerNo

Coating finishCVD Diamond

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/4

Length typeStandard

Manufacturers catalog numberDIAB430-0.250-D3-B.0-Z4

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.1250

Number of flutes4

Overall length in2-1/2

Overall length tolerance+0.0600/-0.0600 in

Reach length0.7500

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
