Seco

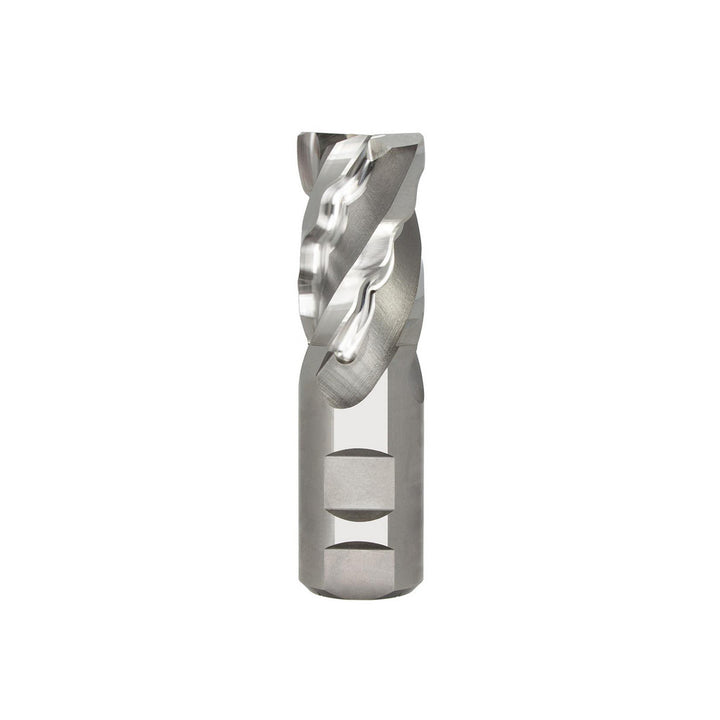

3/4" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013176

MFR# 17013176Cat# VFP435-0.750-D4-C030.3-Z4Series VFP635

$149.70List $192.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialCobalt

CoatingBright/Uncoated

Description

The Seco 17013176 is a 3/4 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 3 length of cut, 5-1/4 overall length. Series VFP635.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0300

Chamfer width0.0300

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut in3

Length typeLong

Manufacturers catalog numberVFP435-0.750-D4-C030.3-Z4

Material gradeM42

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance+0.0020 to -0.0000 in

Number of flutes4

Overall length in5-1/4

PitchSuper Close

Primary workpiece materialStainless Steel; Superalloys & Titanium

Reach length in3

Shank diameter in3/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
