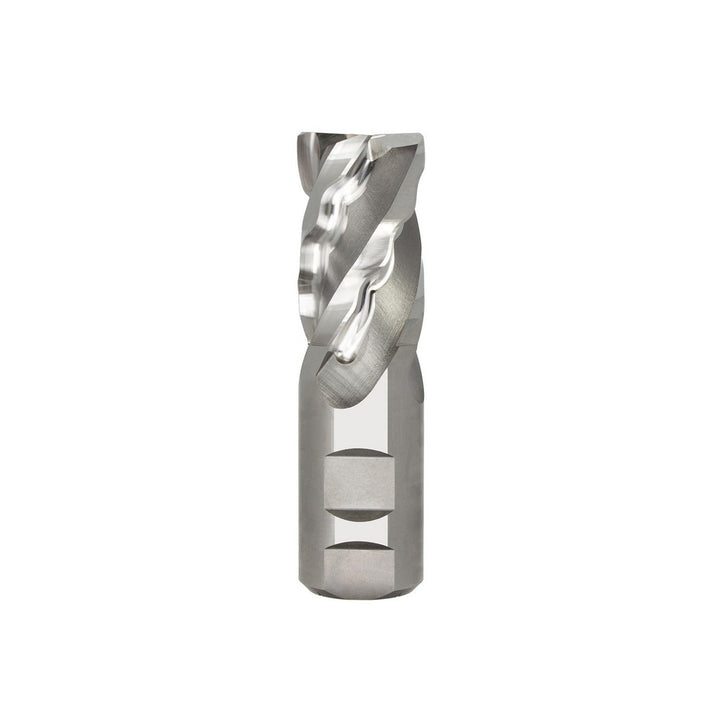

1" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013180

MFR# 17013180Cat# VFP435-1.000-D3-C030.3-Z4Series VFP635

$214.42List $275.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialCobalt

CoatingBright/Uncoated

Description

The Seco 17013180 is a 1 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 3 length of cut, 5-1/2 overall length. Series VFP635.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0300

Chamfer width0.0300

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut in3

Length typeRegular

Manufacturers catalog numberVFP435-1.000-D3-C030.3-Z4

Material gradeM42

Material removal typeRoughing

Mill diameter in1

Mill diameter tolerance+0.0020 to -0.0000 in

Number of flutes4

Overall length in5-1/2

PitchSuper Close

Primary workpiece materialStainless Steel; Superalloys & Titanium

Reach length in3

Shank diameter in1

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
