Seco

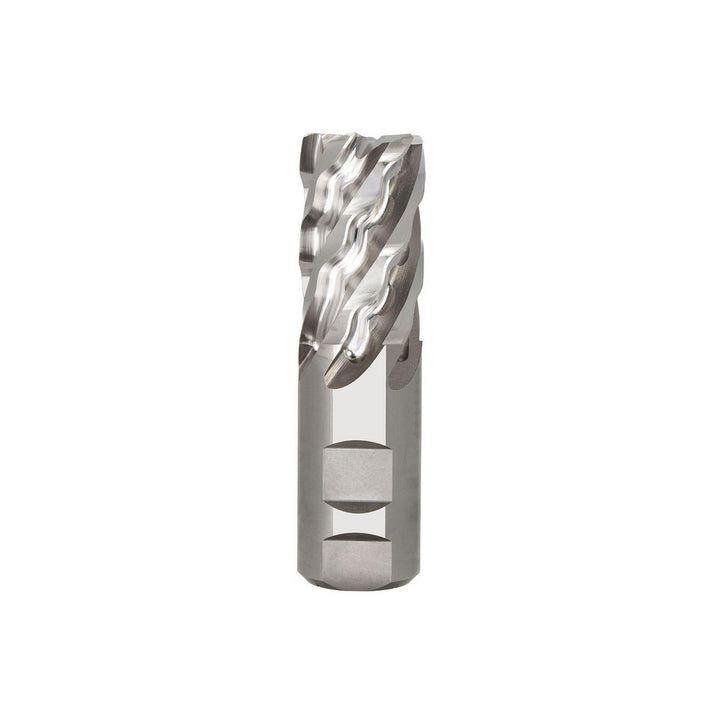

1-1/4" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013187

MFR# 17013187Cat# VFP635-1.250-D3-C040.3-Z6Series VFP635

$304.08List $390.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1-1/4

Flutes4

MaterialCobalt

CoatingBright/Uncoated

Description

The Seco 17013187 is a 1-1/4 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 3 length of cut, 5-1/2 overall length. Series VFP635.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0400

Chamfer width0.0400

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut in3

Length typeRegular

Manufacturers catalog numberVFP635-1.250-D3-C040.3-Z6

Material gradeM42

Material removal typeRoughing

Mill diameter in1-1/4

Mill diameter tolerance+0.0020 to -0.0000 in

Number of flutes4

Overall length in5-1/2

PitchSuper Close

Primary workpiece materialStainless Steel; Superalloys & Titanium

Reach length in3

Shank diameter in1-1/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
