Seco

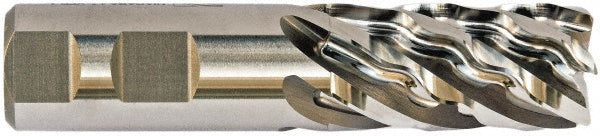

1-1/2" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013194
MFR# 17013194Cat# VFP635-1.500-P4-C040.3-Z6Series VFP635
$568.40List $729.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1-1/2
Flutes4
MaterialCobalt
CoatingBright/Uncoated
Description
The Seco 17013194 is a 1-1/2 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 6 length of cut, 8-1/2 overall length. Series VFP635.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0400
Chamfer width0.0400
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut in6
Length typeLong
Manufacturers catalog numberVFP635-1.500-P4-C040.3-Z6
Material gradeM42
Material removal typeRoughing
Mill diameter in1-1/2
Mill diameter tolerance+0.0020 to -0.0000 in
Number of flutes4
Overall length in8-1/2
PitchSuper Close
Primary workpiece materialStainless Steel; Superalloys & Titanium
Reach length in6
Shank diameter in1-1/4
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
