Seco

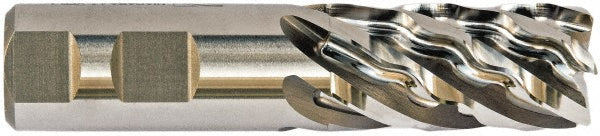

2" 4-Flute Cobalt Corner Radius & Corner Chamfer End Mill - Seco 17013196
MFR# 17013196Cat# VFP635-2.000-D2-C040.3-Z6Series VFP635
$625.32List $802.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter2
Flutes4
MaterialCobalt
CoatingBright/Uncoated
Description
The Seco 17013196 is a 2 4-flute Cobalt (M42) corner radius & corner chamfer end mill. Suited for stainless steel, superalloys & titanium. 3 length of cut, 6-3/4 overall length. Series VFP635.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0400
Chamfer width0.0400
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix styleMedium
Length of cut in3
Length typeShort
Manufacturers catalog numberVFP635-2.000-D2-C040.3-Z6
Material gradeM42
Material removal typeRoughing
Mill diameter in2
Mill diameter tolerance+0.0020 to -0.0000 in
Number of flutes4
Overall length in6-3/4
PitchSuper Close
Primary workpiece materialStainless Steel; Superalloys & Titanium
Reach length in3
Shank diameter in2
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
