1/32" 2-Flute Solid Carbide Ball End Mill - SGS 00469

SGS

1/32" 2-Flute Solid Carbide Ball End Mill - SGS 00469

MFR# 00469Series 1625

$27.32List $34.44 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/32
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

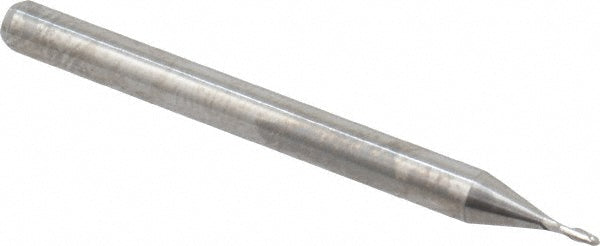

The SGS 00469 is a 1/32 2-flute Solid Carbide (Micrograin) ball end mill. 3/32 length of cut, 1-1/2 overall length. Series 1625.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/32
Length typeRegular
Material gradeMicrograin
Mill diameter in1/32
Mill diameter tolerance+0.0000 to -0.0008 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Single or double endSingle
Variable helixNo
Variable indexNo
