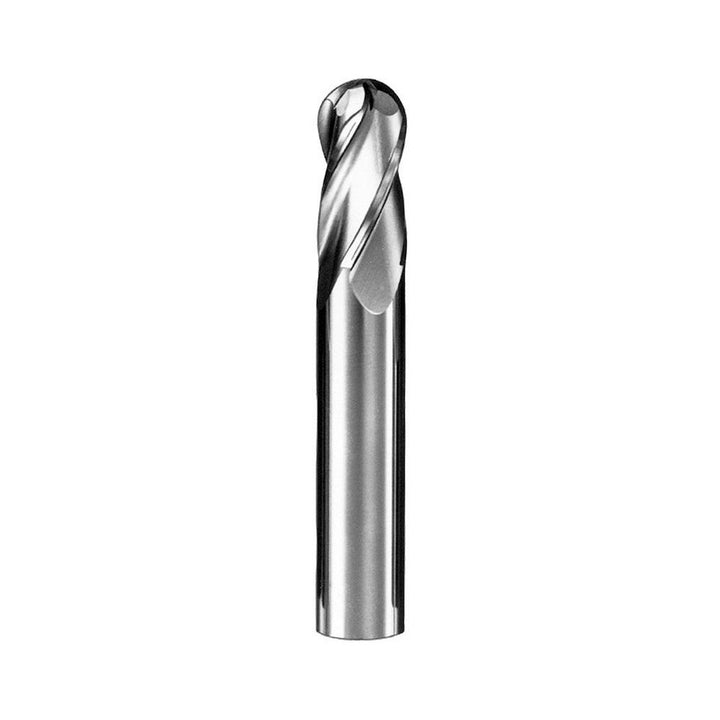

1/16" 4-Flute Solid Carbide Ball End Mill - SGS 30108

SGS

1/16" 4-Flute Solid Carbide Ball End Mill - SGS 30108

MFR# 30108Series 1B

$17.84List $22.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30108 is a 1/16 4-flute Solid Carbide (Micrograin) ball end mill. 3/16 length of cut, 1-1/2 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length typeRegular
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexYes
