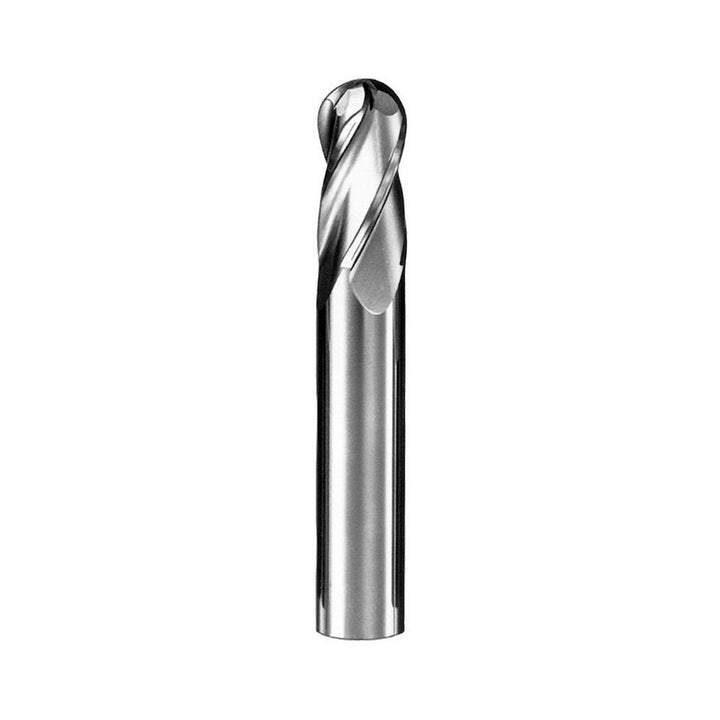

9/64" 4-Flute Solid Carbide Ball End Mill - SGS 30118

SGS

9/64" 4-Flute Solid Carbide Ball End Mill - SGS 30118

MFR# 30118Series 1B

$24.04List $30.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30118 is a 9/64 4-flute Solid Carbide (Micrograin) ball end mill. 1/2 length of cut, 2 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in9/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexYes
