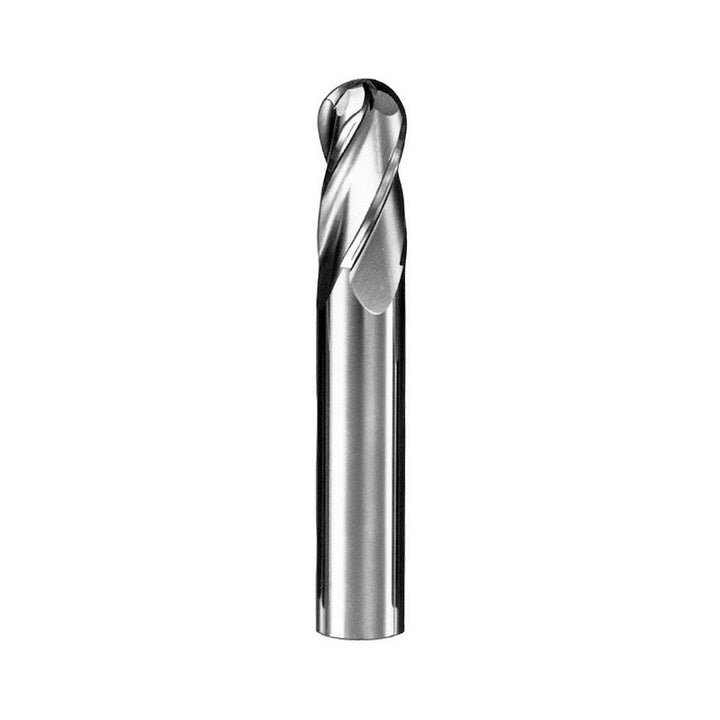

1" 4-Flute Solid Carbide Ball End Mill - SGS 30176

SGS

1" 4-Flute Solid Carbide Ball End Mill - SGS 30176

MFR# 30176Series 1B

$428.52List $540.04 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30176 is a 1 4-flute Solid Carbide (Micrograin) ball end mill. 1-1/2 length of cut, 4 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in4
Shank diameter in1
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexYes
