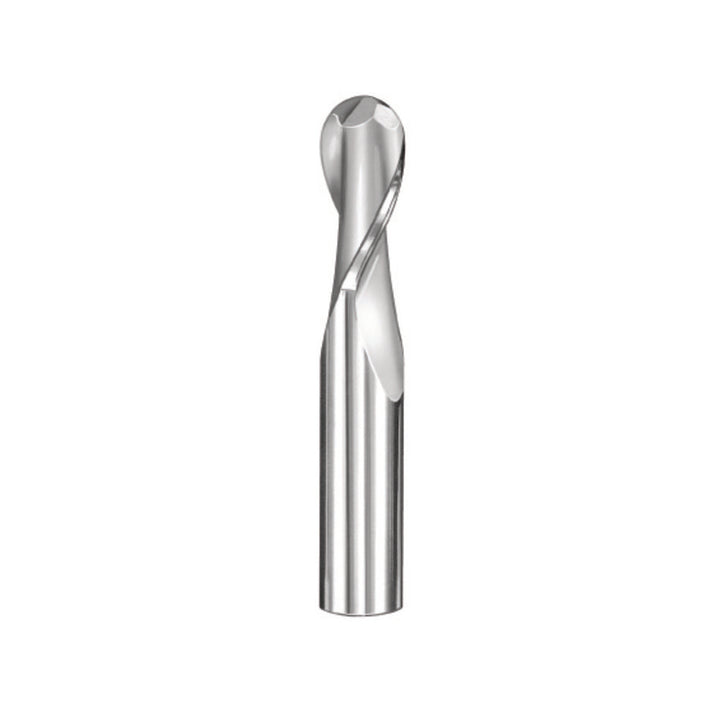

9/64" 2-Flute Solid Carbide Ball End Mill - SGS 30318

SGS

9/64" 2-Flute Solid Carbide Ball End Mill - SGS 30318

MFR# 30318Series 3B

$29.47List $37.15 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30318 is a 9/64 2-flute Solid Carbide (Micrograin) ball end mill. 1/2 length of cut, 2 overall length. Series 3B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in9/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes2
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexNo
