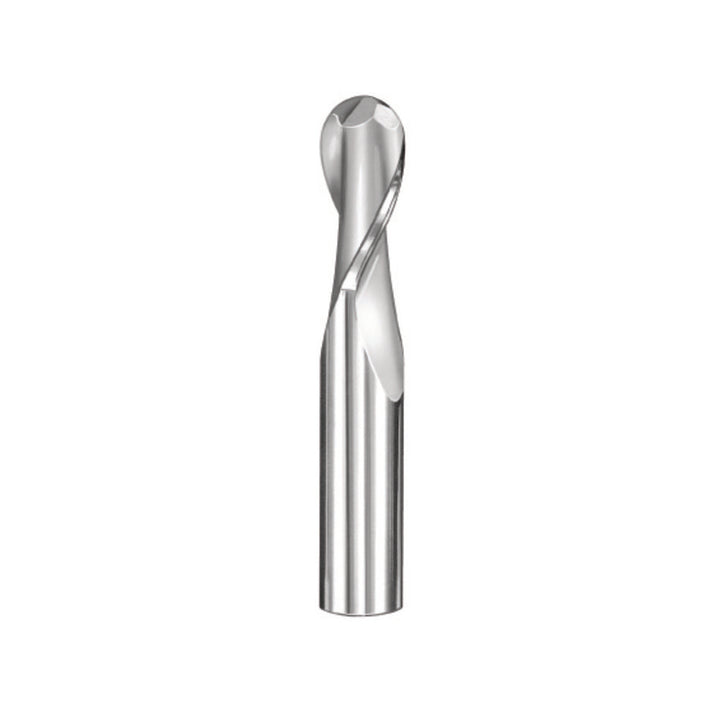

5/32" 2-Flute Solid Carbide Ball End Mill - SGS 30320

SGS

5/32" 2-Flute Solid Carbide Ball End Mill - SGS 30320

MFR# 30320Series 3B

$23.68List $30.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30320 is a 5/32 2-flute Solid Carbide (Micrograin) ball end mill. 1/2 length of cut, 2 overall length. Series 3B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes2
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Hertel5/32" 2-Flute Solid Carbide Ball End Mill - Hertel E599924482 $19.66 Hertel5/32" 2-Flute Solid Carbide Ball End Mill - Hertel E599924392 $33.61 Cleveland5/32" 2-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C39159 $86.66 Hertel5/32" 2-Flute High Speed Steel Ball End Mill - Hertel E2110010 $20.98
