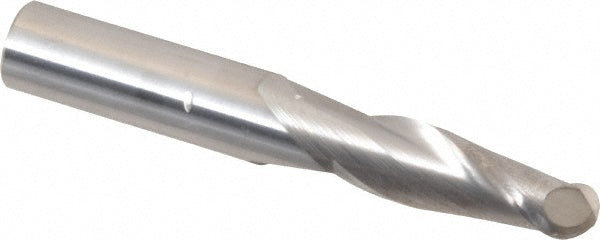

11/32" 2-Flute Solid Carbide Ball End Mill - SGS 30344

SGS

11/32" 2-Flute Solid Carbide Ball End Mill - SGS 30344

MFR# 30344Series 3B

$47.22List $60.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter11/32
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30344 is a 11/32 2-flute Solid Carbide (Micrograin) ball end mill. 1 length of cut, 2-1/2 overall length. Series 3B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in11/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexNo
