SGS

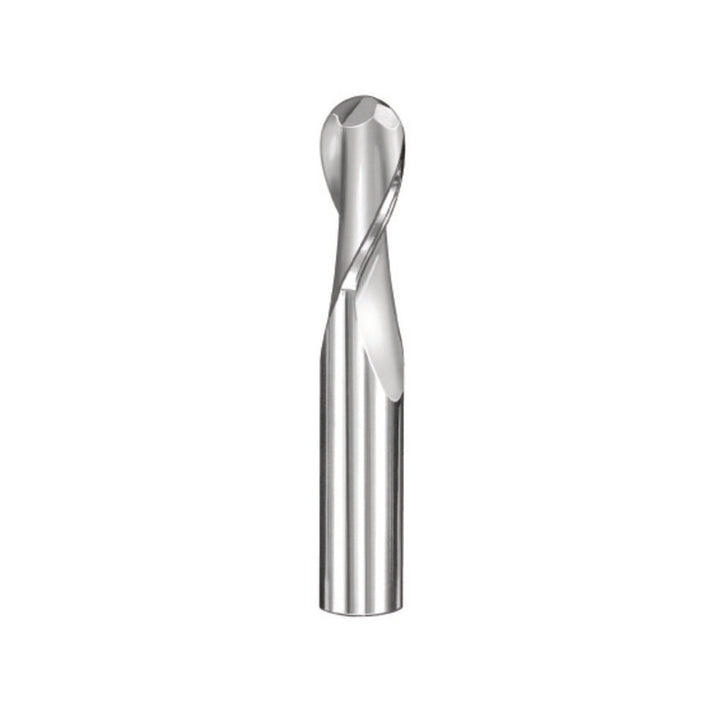

1/8" 2-Flute Solid Carbide Ball End Mill - SGS 30378

MFR# 30378Series 03B

$15.94List $20.45 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 30378 is a 1/8 2-flute Solid Carbide (Micrograin) ball end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 3/8 length of cut, 1-1/2 overall length. Series 03B.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length typeStandard

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes2

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy

Shank diameter in1/8

Shank diameter tolerance+0.00000/-0.00032 in

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
