7/32" 3-Flute Solid Carbide Ball End Mill - SGS 30528

SGS

7/32" 3-Flute Solid Carbide Ball End Mill - SGS 30528

MFR# 30528Series 5B

$27.93List $35.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

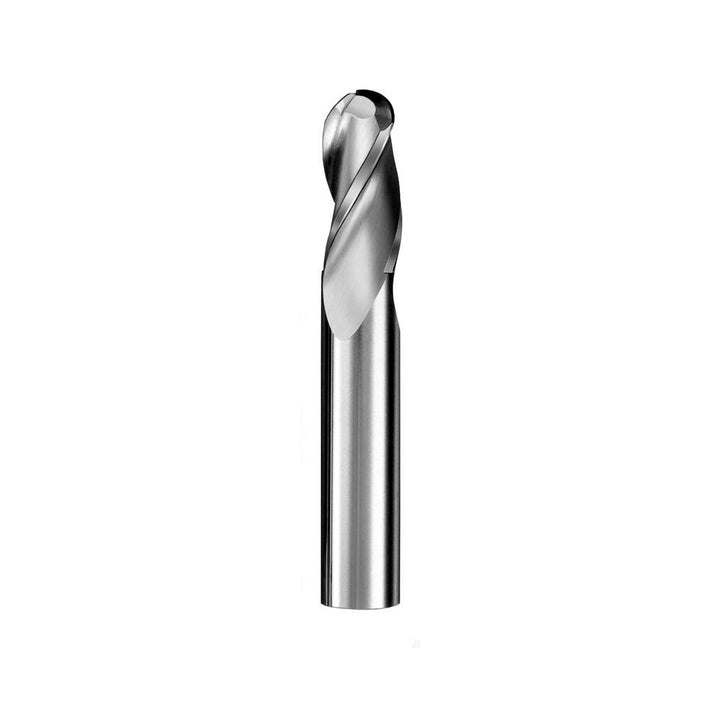

The SGS 30528 is a 7/32 3-flute Solid Carbide (Micrograin) ball end mill. 5/8 length of cut, 2-1/2 overall length. Series 5B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Mill diameter in7/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexNo
