SGS

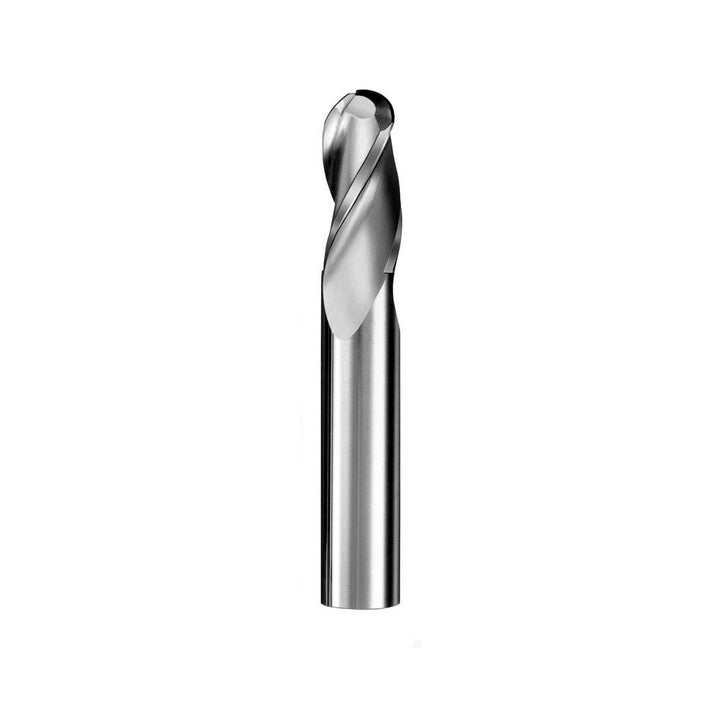

17/64" 3-Flute Solid Carbide Ball End Mill - SGS 30534
MFR# 30534Series 5B
$35.10List $45.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter17/64
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description
The SGS 30534 is a 17/64 3-flute Solid Carbide (Micrograin) ball end mill. 3/4 length of cut, 2-1/2 overall length. Series 5B.
Specifications
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in17/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
