21/64" 3-Flute Solid Carbide Ball End Mill - SGS 30542

SGS

21/64" 3-Flute Solid Carbide Ball End Mill - SGS 30542

MFR# 30542Series 5B

$46.50List $59.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter21/64
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

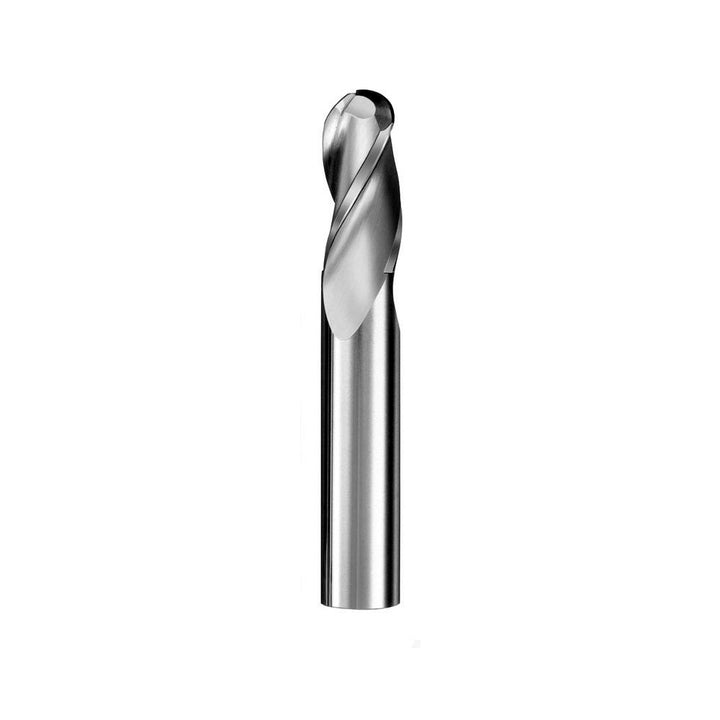

The SGS 30542 is a 21/64 3-flute Solid Carbide (Micrograin) ball end mill. 1 length of cut, 2-1/2 overall length. Series 5B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in21/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexNo
