3/4" 3-Flute Solid Carbide Ball End Mill - SGS 30572

SGS

3/4" 3-Flute Solid Carbide Ball End Mill - SGS 30572

MFR# 30572Series 5B

$200.76List $257.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

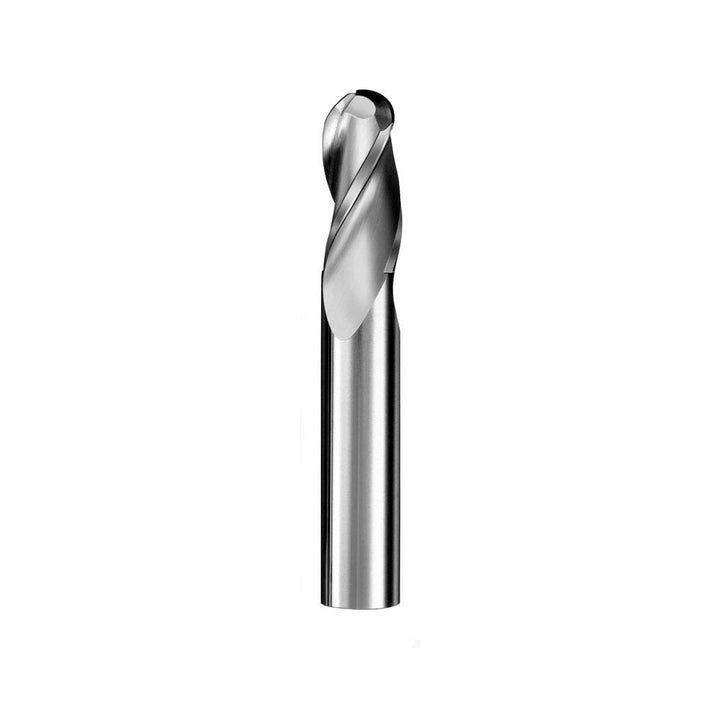

The SGS 30572 is a 3/4 3-flute Solid Carbide (Micrograin) ball end mill. 1-1/2 length of cut, 4 overall length. Series 5B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes3
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexNo
