SGS

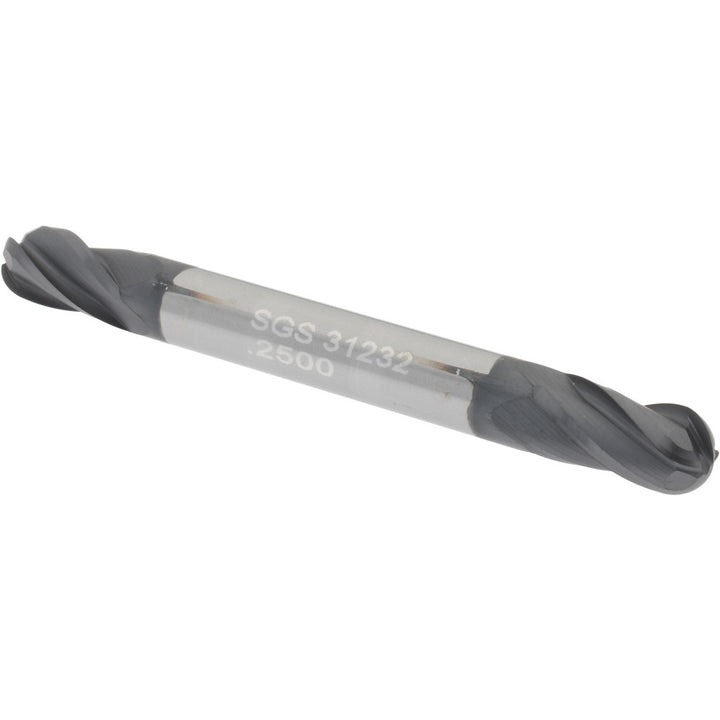

1/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31232

MFR# 31232Series 14B

$44.45List $57.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 31232 is a 1/4 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 2-1/2 overall length. Series 14B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length typeStub

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes4

Overall length in2-1/2

Shank diameter in1/4

Shank diameter tolerance-0.0001 to -0.0004 in

Single or double endDouble

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
