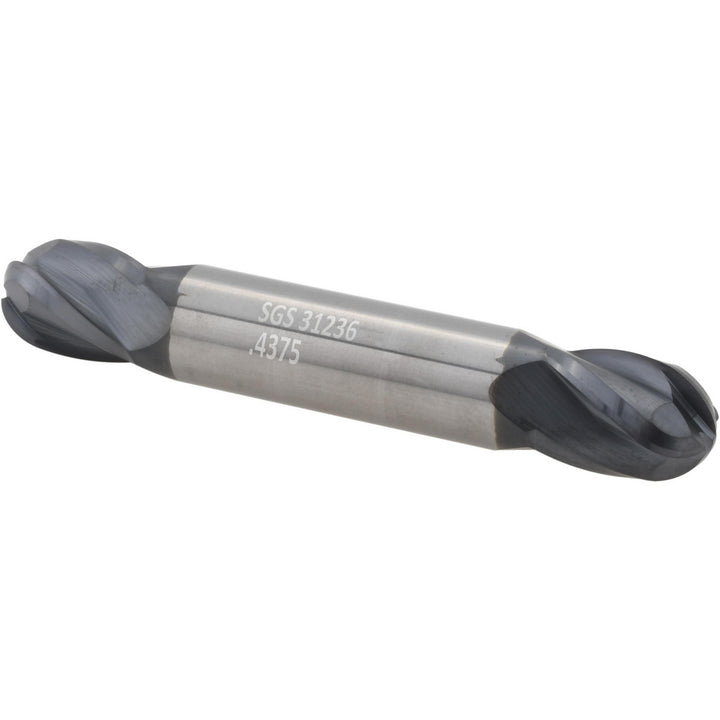

7/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31236

MFR# 31236Series 14B

$92.04List $118.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 31236 is a 7/16 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 9/16 length of cut, 2-3/4 overall length. Series 14B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in9/16

Length typeStub

Material gradeMicrograin

Mill diameter in7/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in2-3/4

Shank diameter in7/16

Shank diameter tolerance-0.0001/-0.0004 in

Single or double endDouble

Variable helixNo

Variable indexNo
