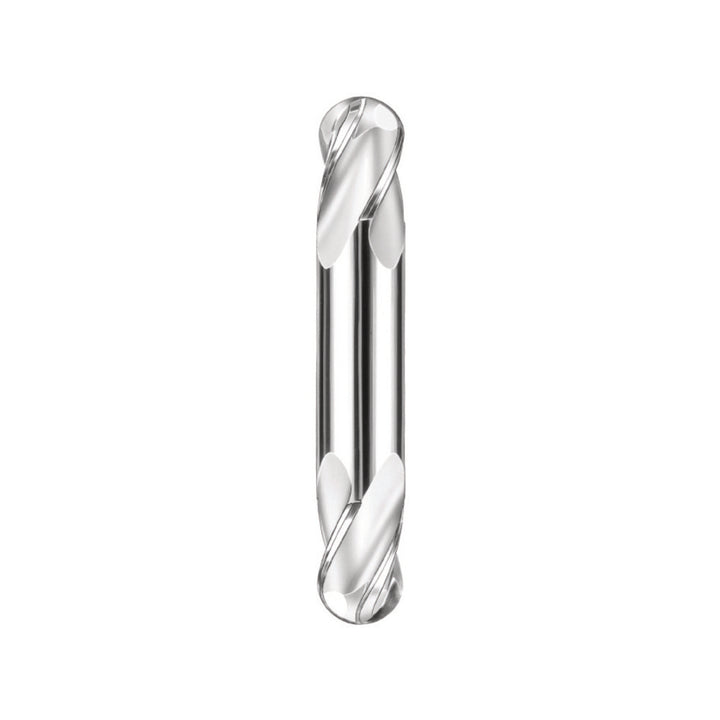

5/64" 4-Flute Solid Carbide Ball End Mill - SGS 31408

SGS

5/64" 4-Flute Solid Carbide Ball End Mill - SGS 31408

MFR# 31408Series 14B

$25.78List $33.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/64
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 31408 is a 5/64 4-flute Solid Carbide (Micrograin) ball end mill. 1/8 length of cut, 1-1/2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/8
Length typeStub
Material gradeMicrograin
Mill diameter in5/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endDouble
Variable helixNo
Variable indexNo
