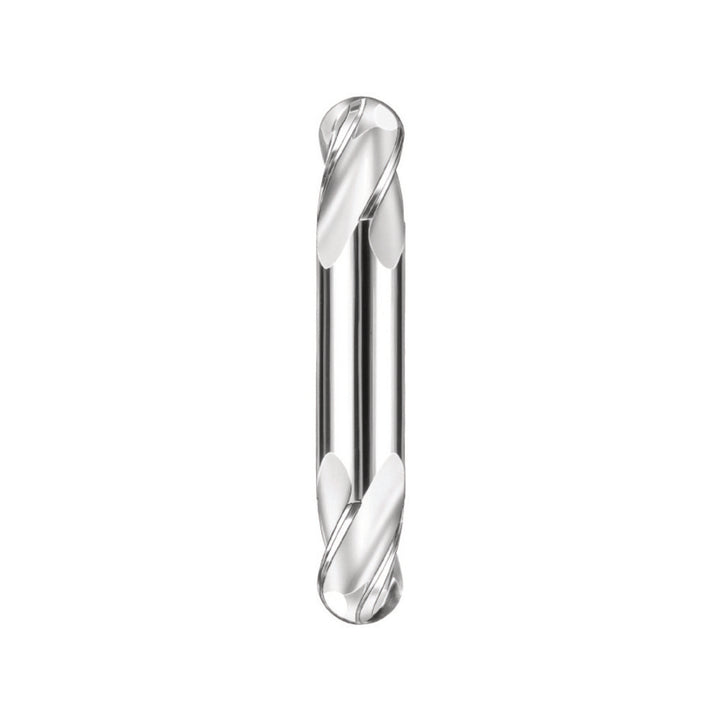

5/32" 4-Flute Solid Carbide Ball End Mill - SGS 31418

SGS

5/32" 4-Flute Solid Carbide Ball End Mill - SGS 31418

MFR# 31418Series 14B

$41.37List $52.13 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 31418 is a 5/32 4-flute Solid Carbide (Micrograin) ball end mill. 5/16 length of cut, 2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endDouble
Variable helixNo
Variable indexNo
