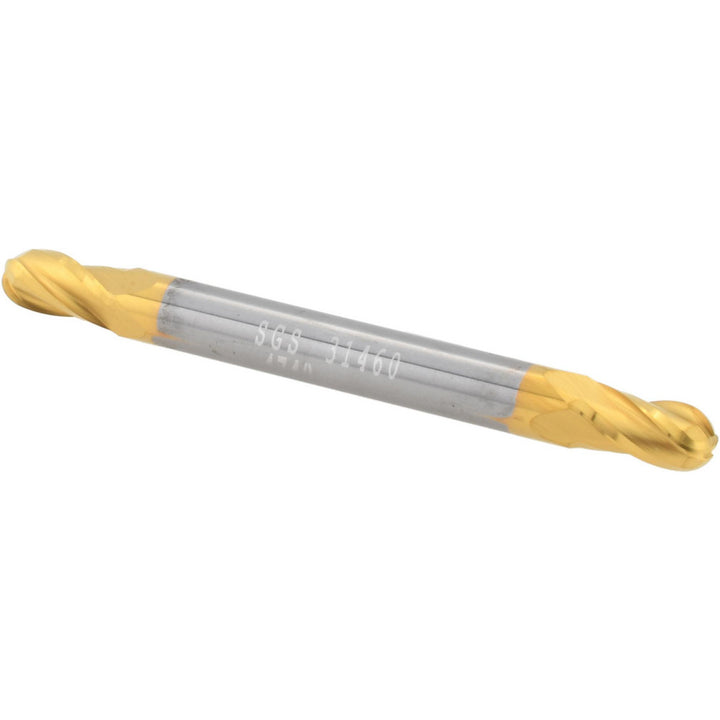

11/64" 4-Flute Solid Carbide Ball End Mill, TiN - SGS 31460

SGS

11/64" 4-Flute Solid Carbide Ball End Mill, TiN - SGS 31460

MFR# 31460Series 14B

$37.65List $48.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter11/64
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 31460 is a 11/64 4-flute Solid Carbide (Micrograin) ball end mill with a TiN finish for longer tool life. 5/16 length of cut, 2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length typeStub
Material gradeMicrograin
Mill diameter in11/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endDouble
Variable helixNo
Variable indexNo
