SGS

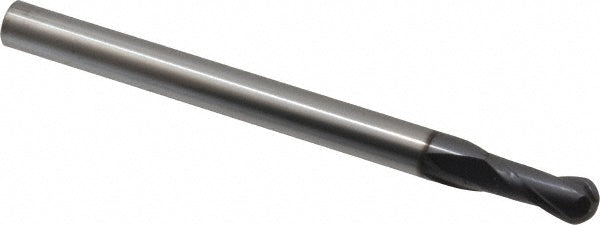

5/16" 2-Flute Solid Carbide Ball End Mill, AlTiN - SGS 32203

MFR# 32203Series 59B

$63.86List $81.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 32203 is a 5/16 2-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 11/16 length of cut, 4 overall length. Series 59B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in11/16

Length typeLong

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes2

Overall length in4

Shank diameter in5/16

Shank diameter tolerance+0.00000 to -0.00035 in

Single or double endSingle

Variable helixNo

Variable indexNo
