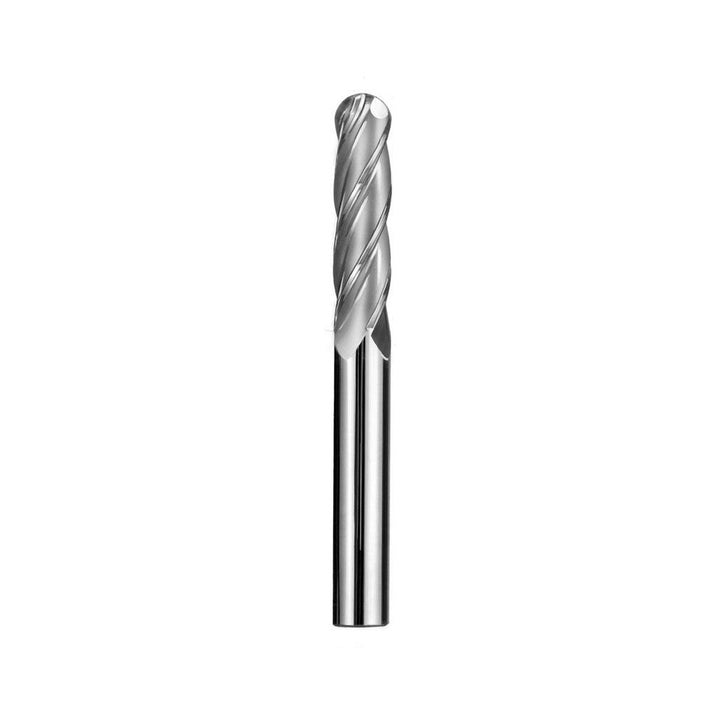

3/4" 4-Flute Solid Carbide Ball End Mill - SGS 33116

SGS

3/4" 4-Flute Solid Carbide Ball End Mill - SGS 33116

MFR# 33116Series 1LB

$261.63List $335.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 33116 is a 3/4 4-flute Solid Carbide (Micrograin) ball end mill. 2-1/4 length of cut, 5 overall length. Series 1LB.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/4
Length typeLong
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in5
Shank diameter in3/4
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexYes
